1. Material Principles and Crystal Chemistry
1.1 Composition and Polymorphic Structure
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its exceptional hardness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures differing in piling series– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technologically relevant.
The strong directional covalent bonds (Si– C bond power ~ 318 kJ/mol) result in a high melting point (~ 2700 ° C), reduced thermal expansion (~ 4.0 × 10 ⁻⁶/ K), and outstanding resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC does not have an indigenous glassy stage, contributing to its stability in oxidizing and corrosive environments as much as 1600 ° C.
Its large bandgap (2.3– 3.3 eV, depending upon polytype) likewise enhances it with semiconductor buildings, making it possible for dual use in architectural and electronic applications.
1.2 Sintering Challenges and Densification Strategies
Pure SiC is incredibly challenging to densify because of its covalent bonding and reduced self-diffusion coefficients, requiring using sintering aids or innovative handling methods.
Reaction-bonded SiC (RB-SiC) is produced by penetrating permeable carbon preforms with liquified silicon, forming SiC in situ; this approach returns near-net-shape elements with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) utilizes boron and carbon additives to promote densification at ~ 2000– 2200 ° C under inert atmosphere, attaining > 99% academic thickness and remarkable mechanical properties.
Liquid-phase sintered SiC (LPS-SiC) uses oxide ingredients such as Al Two O ₃– Y TWO O FIVE, creating a transient liquid that improves diffusion but might reduce high-temperature toughness because of grain-boundary phases.
Hot pressing and spark plasma sintering (SPS) provide quick, pressure-assisted densification with great microstructures, suitable for high-performance elements calling for minimal grain development.
2. Mechanical and Thermal Performance Characteristics
2.1 Strength, Firmness, and Use Resistance
Silicon carbide ceramics show Vickers firmness values of 25– 30 GPa, second just to ruby and cubic boron nitride among engineering products.
Their flexural strength normally varies from 300 to 600 MPa, with crack durability (K_IC) of 3– 5 MPa · m 1ST/ ²– modest for ceramics yet improved through microstructural design such as hair or fiber reinforcement.
The mix of high solidity and elastic modulus (~ 410 GPa) makes SiC incredibly immune to rough and abrasive wear, outshining tungsten carbide and hardened steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC elements show service lives several times longer than standard choices.
Its low density (~ 3.1 g/cm ³) more contributes to put on resistance by minimizing inertial pressures in high-speed revolving components.
2.2 Thermal Conductivity and Security
One of SiC’s most distinguishing attributes is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline types, and approximately 490 W/(m · K) for single-crystal 4H-SiC– surpassing most metals except copper and light weight aluminum.
This residential or commercial property allows reliable heat dissipation in high-power electronic substrates, brake discs, and warm exchanger elements.
Combined with low thermal expansion, SiC shows superior thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high values indicate strength to quick temperature level adjustments.

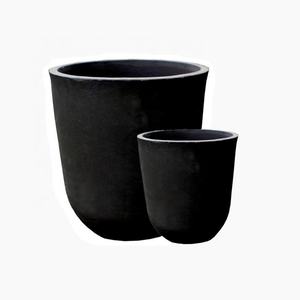

For instance, SiC crucibles can be heated from room temperature to 1400 ° C in mins without fracturing, a task unattainable for alumina or zirconia in similar problems.
In addition, SiC preserves stamina up to 1400 ° C in inert atmospheres, making it suitable for heating system fixtures, kiln furniture, and aerospace elements exposed to severe thermal cycles.
3. Chemical Inertness and Deterioration Resistance
3.1 Habits in Oxidizing and Lowering Atmospheres
At temperatures listed below 800 ° C, SiC is highly steady in both oxidizing and lowering settings.
Over 800 ° C in air, a safety silica (SiO TWO) layer types on the surface via oxidation (SiC + 3/2 O TWO → SiO TWO + CARBON MONOXIDE), which passivates the product and slows more destruction.
Nonetheless, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)FOUR, resulting in accelerated economic downturn– an essential consideration in generator and combustion applications.
In decreasing environments or inert gases, SiC stays stable approximately its decay temperature level (~ 2700 ° C), with no phase changes or toughness loss.
This security makes it suitable for molten steel handling, such as light weight aluminum or zinc crucibles, where it stands up to wetting and chemical attack much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is basically inert to all acids other than hydrofluoric acid (HF) and strong oxidizing acid mixes (e.g., HF– HNO THREE).
It shows exceptional resistance to alkalis as much as 800 ° C, though long term exposure to thaw NaOH or KOH can cause surface etching via development of soluble silicates.
In liquified salt settings– such as those in concentrated solar energy (CSP) or nuclear reactors– SiC demonstrates exceptional deterioration resistance compared to nickel-based superalloys.
This chemical effectiveness underpins its usage in chemical process equipment, including shutoffs, liners, and heat exchanger tubes handling aggressive media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Emerging Frontiers
4.1 Established Makes Use Of in Power, Defense, and Manufacturing
Silicon carbide porcelains are important to countless high-value commercial systems.
In the energy industry, they act as wear-resistant liners in coal gasifiers, parts in nuclear fuel cladding (SiC/SiC composites), and substrates for high-temperature strong oxide gas cells (SOFCs).
Protection applications consist of ballistic shield plates, where SiC’s high hardness-to-density proportion supplies exceptional defense against high-velocity projectiles compared to alumina or boron carbide at lower cost.
In manufacturing, SiC is made use of for accuracy bearings, semiconductor wafer taking care of components, and unpleasant blowing up nozzles as a result of its dimensional stability and purity.
Its use in electric lorry (EV) inverters as a semiconductor substrate is swiftly expanding, driven by effectiveness gains from wide-bandgap electronic devices.
4.2 Next-Generation Advancements and Sustainability
Continuous research concentrates on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which show pseudo-ductile behavior, enhanced toughness, and retained stamina over 1200 ° C– excellent for jet engines and hypersonic vehicle leading sides.
Additive manufacturing of SiC using binder jetting or stereolithography is advancing, enabling complicated geometries formerly unattainable through traditional developing methods.
From a sustainability perspective, SiC’s longevity lowers substitute regularity and lifecycle exhausts in commercial systems.
Recycling of SiC scrap from wafer slicing or grinding is being established with thermal and chemical recovery processes to reclaim high-purity SiC powder.
As markets press toward higher efficiency, electrification, and extreme-environment procedure, silicon carbide-based ceramics will certainly continue to be at the leading edge of innovative materials design, linking the gap between architectural durability and functional flexibility.
