1. The Product Structure and Crystallographic Identity of Alumina Ceramics
1.1 Atomic Design and Stage Stability

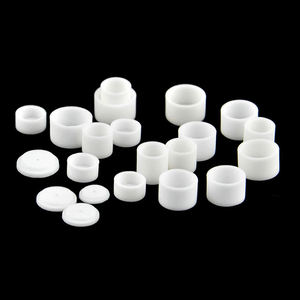

(Alumina Ceramics)
Alumina porcelains, primarily made up of light weight aluminum oxide (Al two O SIX), stand for one of the most commonly utilized courses of sophisticated ceramics as a result of their outstanding equilibrium of mechanical strength, thermal resilience, and chemical inertness.
At the atomic degree, the efficiency of alumina is rooted in its crystalline structure, with the thermodynamically secure alpha stage (α-Al ₂ O FOUR) being the leading type utilized in engineering applications.
This phase embraces a rhombohedral crystal system within the hexagonal close-packed (HCP) lattice, where oxygen anions form a thick plan and light weight aluminum cations inhabit two-thirds of the octahedral interstitial sites.
The resulting framework is very secure, adding to alumina’s high melting point of about 2072 ° C and its resistance to decomposition under severe thermal and chemical conditions.
While transitional alumina stages such as gamma (γ), delta (δ), and theta (θ) exist at lower temperatures and show greater surface, they are metastable and irreversibly change right into the alpha phase upon home heating over 1100 ° C, making α-Al ₂ O ₃ the unique phase for high-performance architectural and useful parts.
1.2 Compositional Grading and Microstructural Design
The residential properties of alumina porcelains are not dealt with yet can be tailored through managed variations in purity, grain dimension, and the enhancement of sintering aids.
High-purity alumina (≥ 99.5% Al ₂ O ₃) is utilized in applications requiring optimum mechanical stamina, electrical insulation, and resistance to ion diffusion, such as in semiconductor handling and high-voltage insulators.
Lower-purity qualities (ranging from 85% to 99% Al ₂ O SIX) frequently integrate additional stages like mullite (3Al two O FIVE · 2SiO ₂) or lustrous silicates, which enhance sinterability and thermal shock resistance at the expenditure of solidity and dielectric performance.
A critical factor in efficiency optimization is grain size control; fine-grained microstructures, achieved through the enhancement of magnesium oxide (MgO) as a grain development inhibitor, dramatically enhance fracture toughness and flexural stamina by restricting crack proliferation.
Porosity, also at reduced degrees, has a damaging effect on mechanical integrity, and fully dense alumina ceramics are typically produced by means of pressure-assisted sintering strategies such as hot pressing or warm isostatic pushing (HIP).
The interaction in between composition, microstructure, and handling defines the useful envelope within which alumina porcelains operate, allowing their use across a large range of industrial and technological domains.
( Alumina Ceramics)
2. Mechanical and Thermal Efficiency in Demanding Environments
2.1 Stamina, Firmness, and Use Resistance
Alumina porcelains show a special mix of high firmness and modest fracture durability, making them suitable for applications including rough wear, disintegration, and influence.
With a Vickers hardness normally ranging from 15 to 20 Grade point average, alumina rankings amongst the hardest design products, surpassed just by ruby, cubic boron nitride, and particular carbides.
This severe hardness equates into remarkable resistance to damaging, grinding, and particle impingement, which is manipulated in elements such as sandblasting nozzles, reducing tools, pump seals, and wear-resistant linings.
Flexural stamina values for thick alumina array from 300 to 500 MPa, depending on pureness and microstructure, while compressive stamina can surpass 2 GPa, enabling alumina parts to hold up against high mechanical lots without deformation.
Regardless of its brittleness– an usual attribute among ceramics– alumina’s efficiency can be optimized through geometric design, stress-relief features, and composite support techniques, such as the consolidation of zirconia bits to cause transformation toughening.
2.2 Thermal Behavior and Dimensional Security
The thermal buildings of alumina ceramics are central to their usage in high-temperature and thermally cycled settings.
With a thermal conductivity of 20– 30 W/m · K– more than the majority of polymers and comparable to some steels– alumina successfully dissipates warmth, making it suitable for warmth sinks, insulating substrates, and heating system parts.
Its reduced coefficient of thermal growth (~ 8 × 10 ⁻⁶/ K) makes sure minimal dimensional modification throughout heating and cooling, decreasing the danger of thermal shock splitting.
This stability is specifically useful in applications such as thermocouple defense tubes, spark plug insulators, and semiconductor wafer handling systems, where accurate dimensional control is important.
Alumina maintains its mechanical integrity up to temperature levels of 1600– 1700 ° C in air, past which creep and grain boundary moving might start, relying on pureness and microstructure.
In vacuum or inert ambiences, its performance extends even better, making it a recommended product for space-based instrumentation and high-energy physics experiments.
3. Electrical and Dielectric Attributes for Advanced Technologies
3.1 Insulation and High-Voltage Applications
Among one of the most significant practical qualities of alumina porcelains is their outstanding electric insulation capacity.
With a quantity resistivity going beyond 10 ¹⁴ Ω · cm at room temperature level and a dielectric stamina of 10– 15 kV/mm, alumina acts as a reliable insulator in high-voltage systems, including power transmission tools, switchgear, and digital product packaging.
Its dielectric continuous (εᵣ ≈ 9– 10 at 1 MHz) is reasonably stable across a wide regularity variety, making it suitable for usage in capacitors, RF elements, and microwave substratums.
Reduced dielectric loss (tan δ < 0.0005) makes certain marginal energy dissipation in alternating current (AC) applications, boosting system performance and minimizing warmth generation.
In published circuit boards (PCBs) and hybrid microelectronics, alumina substratums provide mechanical assistance and electrical seclusion for conductive traces, making it possible for high-density circuit assimilation in rough settings.
3.2 Performance in Extreme and Sensitive Atmospheres
Alumina ceramics are distinctly suited for use in vacuum cleaner, cryogenic, and radiation-intensive settings because of their low outgassing rates and resistance to ionizing radiation.
In fragment accelerators and combination activators, alumina insulators are made use of to isolate high-voltage electrodes and diagnostic sensors without introducing impurities or degrading under prolonged radiation exposure.
Their non-magnetic nature likewise makes them ideal for applications including strong magnetic fields, such as magnetic resonance imaging (MRI) systems and superconducting magnets.
Moreover, alumina’s biocompatibility and chemical inertness have caused its fostering in clinical devices, including dental implants and orthopedic components, where long-lasting security and non-reactivity are critical.
4. Industrial, Technological, and Emerging Applications
4.1 Role in Industrial Machinery and Chemical Processing
Alumina ceramics are thoroughly utilized in industrial devices where resistance to wear, corrosion, and high temperatures is crucial.
Parts such as pump seals, shutoff seats, nozzles, and grinding media are generally fabricated from alumina due to its capacity to withstand abrasive slurries, aggressive chemicals, and elevated temperatures.
In chemical handling plants, alumina cellular linings shield activators and pipelines from acid and antacid attack, extending devices life and decreasing maintenance expenses.
Its inertness additionally makes it suitable for use in semiconductor manufacture, where contamination control is important; alumina chambers and wafer watercrafts are subjected to plasma etching and high-purity gas environments without leaching pollutants.
4.2 Assimilation right into Advanced Manufacturing and Future Technologies
Past standard applications, alumina ceramics are playing an increasingly important function in emerging innovations.
In additive production, alumina powders are utilized in binder jetting and stereolithography (SHANTY TOWN) processes to fabricate complicated, high-temperature-resistant parts for aerospace and energy systems.
Nanostructured alumina movies are being explored for catalytic supports, sensors, and anti-reflective coverings due to their high surface area and tunable surface chemistry.
Additionally, alumina-based composites, such as Al ₂ O FOUR-ZrO ₂ or Al Two O ₃-SiC, are being created to get over the inherent brittleness of monolithic alumina, offering boosted durability and thermal shock resistance for next-generation structural products.
As markets continue to press the boundaries of performance and dependability, alumina ceramics stay at the forefront of material innovation, connecting the void in between architectural effectiveness and practical versatility.
In summary, alumina ceramics are not just a class of refractory materials but a foundation of modern-day design, allowing technological progression across energy, electronics, health care, and industrial automation.
Their special combination of buildings– rooted in atomic structure and improved with sophisticated processing– ensures their ongoing importance in both established and emerging applications.
As material science advances, alumina will certainly remain a key enabler of high-performance systems running beside physical and environmental extremes.
