1. Basic Structure and Product Structure
1.1 The Nanoscale Design of Aerogels

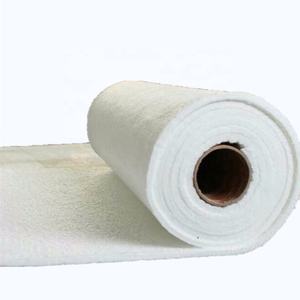

(Aerogel Blanket)
Aerogel coverings are innovative thermal insulation materials built on an one-of-a-kind nanostructured structure, where a strong silica or polymer network extends an ultra-high porosity quantity– generally surpassing 90% air.
This structure originates from the sol-gel procedure, in which a fluid precursor (frequently tetramethyl orthosilicate or TMOS) goes through hydrolysis and polycondensation to develop a damp gel, followed by supercritical or ambient pressure drying to eliminate the fluid without collapsing the fragile permeable network.
The resulting aerogel includes interconnected nanoparticles (3– 5 nm in diameter) developing pores on the scale of 10– 50 nm, tiny enough to suppress air particle motion and hence reduce conductive and convective warmth transfer.
This phenomenon, known as Knudsen diffusion, considerably lowers the effective thermal conductivity of the product, often to values in between 0.012 and 0.018 W/(m · K) at area temperature– among the most affordable of any kind of solid insulator.
Despite their low thickness (as reduced as 0.003 g/cm SIX), pure aerogels are inherently breakable, demanding support for useful use in versatile covering kind.
1.2 Reinforcement and Compound Layout
To overcome delicacy, aerogel powders or pillars are mechanically incorporated right into coarse substrates such as glass fiber, polyester, or aramid felts, developing a composite “covering” that maintains phenomenal insulation while obtaining mechanical toughness.
The reinforcing matrix supplies tensile strength, adaptability, and taking care of sturdiness, enabling the product to be cut, curved, and set up in complex geometries without significant performance loss.
Fiber content typically varies from 5% to 20% by weight, thoroughly stabilized to decrease thermal bridging– where fibers conduct heat throughout the covering– while making sure structural integrity.
Some progressed designs integrate hydrophobic surface area treatments (e.g., trimethylsilyl teams) to stop moisture absorption, which can deteriorate insulation efficiency and promote microbial growth.
These adjustments enable aerogel coverings to maintain stable thermal residential or commercial properties also in humid settings, increasing their applicability beyond controlled research laboratory conditions.
2. Production Processes and Scalability

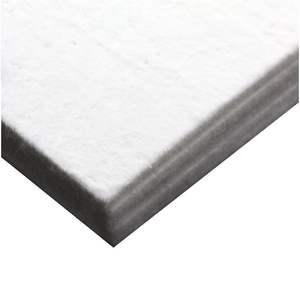

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Manufacturing
The manufacturing of aerogel coverings begins with the development of a wet gel within a fibrous floor covering, either by impregnating the substratum with a liquid precursor or by co-forming the gel and fiber network simultaneously.
After gelation, the solvent need to be gotten rid of under problems that avoid capillary stress and anxiety from collapsing the nanopores; historically, this called for supercritical CO two drying out, an expensive and energy-intensive process.
Current advancements have actually enabled ambient pressure drying via surface area modification and solvent exchange, considerably decreasing production prices and allowing continuous roll-to-roll production.
In this scalable procedure, lengthy rolls of fiber floor covering are constantly coated with precursor remedy, gelled, dried, and surface-treated, permitting high-volume output appropriate for industrial applications.
This shift has actually been essential in transitioning aerogel coverings from particular niche research laboratory materials to commercially viable products used in building and construction, energy, and transportation fields.
2.2 Quality Assurance and Performance Consistency
Making sure uniform pore framework, constant thickness, and trusted thermal efficiency throughout huge production sets is crucial for real-world release.
Producers utilize rigorous quality assurance steps, consisting of laser scanning for density variation, infrared thermography for thermal mapping, and gravimetric analysis for dampness resistance.
Batch-to-batch reproducibility is vital, especially in aerospace and oil & gas industries, where failure due to insulation breakdown can have extreme repercussions.
In addition, standardized testing according to ASTM C177 (warm circulation meter) or ISO 9288 guarantees precise coverage of thermal conductivity and enables reasonable comparison with standard insulators like mineral woollen or foam.
3. Thermal and Multifunctional Residence
3.1 Superior Insulation Throughout Temperature Ranges
Aerogel coverings display impressive thermal efficiency not only at ambient temperature levels but also across severe varieties– from cryogenic problems listed below -100 ° C to heats going beyond 600 ° C, depending on the base material and fiber kind.
At cryogenic temperature levels, conventional foams might fracture or shed effectiveness, whereas aerogel coverings remain flexible and preserve low thermal conductivity, making them ideal for LNG pipes and tank.
In high-temperature applications, such as commercial heating systems or exhaust systems, they offer effective insulation with lowered thickness contrasted to bulkier alternatives, saving space and weight.
Their reduced emissivity and ability to mirror induction heat better improve efficiency in glowing barrier configurations.
This broad functional envelope makes aerogel coverings distinctively flexible among thermal administration services.
3.2 Acoustic and Fireproof Characteristics
Beyond thermal insulation, aerogel blankets show remarkable sound-dampening homes because of their open, tortuous pore framework that dissipates acoustic power through viscous losses.
They are increasingly utilized in auto and aerospace cabins to reduce sound pollution without including significant mass.
Furthermore, most silica-based aerogel coverings are non-combustible, accomplishing Class A fire rankings, and do not release harmful fumes when subjected to flame– important for developing safety and security and public facilities.
Their smoke thickness is extremely low, boosting presence throughout emergency situation emptyings.
4. Applications in Sector and Emerging Technologies
4.1 Power Performance in Building and Industrial Equipment
Aerogel coverings are changing power effectiveness in architecture and commercial engineering by making it possible for thinner, higher-performance insulation layers.
In buildings, they are used in retrofitting historical structures where wall density can not be raised, or in high-performance façades and windows to minimize thermal linking.
In oil and gas, they protect pipes bring warm fluids or cryogenic LNG, reducing energy loss and avoiding condensation or ice development.
Their light-weight nature additionally minimizes architectural lots, particularly beneficial in offshore systems and mobile systems.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel blankets safeguard spacecraft from extreme temperature fluctuations throughout re-entry and shield delicate instruments from thermal cycling in space.
NASA has actually utilized them in Mars rovers and astronaut suits for easy thermal policy.
Automotive manufacturers incorporate aerogel insulation right into electric car battery loads to avoid thermal runaway and enhance safety and efficiency.
Consumer items, consisting of exterior garments, footwear, and camping gear, currently feature aerogel cellular linings for premium warmth without mass.
As production prices decline and sustainability improves, aerogel coverings are poised to become traditional options in global efforts to lower power usage and carbon discharges.
Finally, aerogel blankets stand for a convergence of nanotechnology and practical design, delivering unparalleled thermal performance in an adaptable, sturdy format.
Their capacity to save power, room, and weight while keeping safety and security and ecological compatibility settings them as essential enablers of sustainable innovation throughout diverse markets.
