1. Product Features and Structural Stability
1.1 Innate Qualities of Silicon Carbide

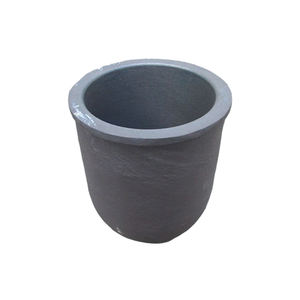

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic compound made up of silicon and carbon atoms prepared in a tetrahedral latticework structure, mostly existing in over 250 polytypic types, with 6H, 4H, and 3C being the most highly relevant.
Its strong directional bonding conveys phenomenal firmness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m · K )for pure solitary crystals), and impressive chemical inertness, making it one of the most durable products for extreme environments.
The broad bandgap (2.9– 3.3 eV) guarantees superb electrical insulation at space temperature level and high resistance to radiation damage, while its low thermal growth coefficient (~ 4.0 × 10 ⁻⁶/ K) contributes to exceptional thermal shock resistance.
These innate residential or commercial properties are protected also at temperatures going beyond 1600 ° C, enabling SiC to keep structural honesty under extended exposure to molten metals, slags, and responsive gases.
Unlike oxide ceramics such as alumina, SiC does not respond easily with carbon or kind low-melting eutectics in lowering environments, an important benefit in metallurgical and semiconductor processing.
When fabricated right into crucibles– vessels designed to include and warmth materials– SiC outshines conventional materials like quartz, graphite, and alumina in both life expectancy and process integrity.
1.2 Microstructure and Mechanical Security
The efficiency of SiC crucibles is very closely tied to their microstructure, which depends on the production technique and sintering ingredients utilized.
Refractory-grade crucibles are generally produced via reaction bonding, where permeable carbon preforms are infiltrated with molten silicon, forming β-SiC with the response Si(l) + C(s) → SiC(s).
This process yields a composite structure of key SiC with recurring complimentary silicon (5– 10%), which enhances thermal conductivity yet might restrict use above 1414 ° C(the melting factor of silicon).
Conversely, completely sintered SiC crucibles are made through solid-state or liquid-phase sintering using boron and carbon or alumina-yttria ingredients, achieving near-theoretical density and greater purity.
These display superior creep resistance and oxidation stability however are more pricey and difficult to make in plus sizes.
( Silicon Carbide Crucibles)
The fine-grained, interlacing microstructure of sintered SiC offers exceptional resistance to thermal exhaustion and mechanical erosion, vital when handling liquified silicon, germanium, or III-V substances in crystal development procedures.
Grain border design, consisting of the control of second phases and porosity, plays a crucial function in figuring out lasting longevity under cyclic heating and aggressive chemical atmospheres.
2. Thermal Performance and Environmental Resistance
2.1 Thermal Conductivity and Heat Circulation
Among the specifying benefits of SiC crucibles is their high thermal conductivity, which allows rapid and uniform heat transfer during high-temperature handling.
As opposed to low-conductivity products like fused silica (1– 2 W/(m · K)), SiC efficiently distributes thermal energy throughout the crucible wall, reducing localized locations and thermal slopes.
This uniformity is important in processes such as directional solidification of multicrystalline silicon for photovoltaics, where temperature level homogeneity straight influences crystal high quality and issue density.
The combination of high conductivity and low thermal growth leads to an extremely high thermal shock criterion (R = k(1 − ν)α/ σ), making SiC crucibles immune to fracturing throughout rapid heating or cooling cycles.
This enables faster heating system ramp prices, improved throughput, and lowered downtime because of crucible failing.
In addition, the product’s capability to endure duplicated thermal cycling without significant deterioration makes it perfect for batch handling in commercial furnaces operating above 1500 ° C.
2.2 Oxidation and Chemical Compatibility
At elevated temperature levels in air, SiC undertakes passive oxidation, creating a safety layer of amorphous silica (SiO TWO) on its surface area: SiC + 3/2 O ₂ → SiO ₂ + CO.
This glazed layer densifies at high temperatures, acting as a diffusion barrier that reduces further oxidation and maintains the underlying ceramic framework.
However, in reducing ambiences or vacuum conditions– typical in semiconductor and metal refining– oxidation is subdued, and SiC remains chemically stable against liquified silicon, aluminum, and many slags.
It resists dissolution and reaction with liquified silicon approximately 1410 ° C, although long term direct exposure can bring about slight carbon pickup or interface roughening.
Crucially, SiC does not present metal impurities into delicate melts, an essential need for electronic-grade silicon manufacturing where contamination by Fe, Cu, or Cr has to be maintained listed below ppb levels.
Nonetheless, treatment must be taken when refining alkaline earth metals or very reactive oxides, as some can wear away SiC at extreme temperature levels.
3. Production Processes and Quality Control
3.1 Construction Methods and Dimensional Control
The manufacturing of SiC crucibles includes shaping, drying, and high-temperature sintering or infiltration, with methods selected based upon required pureness, dimension, and application.
Common creating techniques consist of isostatic pushing, extrusion, and slip casting, each providing different degrees of dimensional accuracy and microstructural harmony.
For huge crucibles made use of in photovoltaic ingot casting, isostatic pressing guarantees constant wall density and density, decreasing the threat of asymmetric thermal growth and failure.
Reaction-bonded SiC (RBSC) crucibles are economical and commonly made use of in shops and solar industries, though recurring silicon restrictions optimal service temperature.
Sintered SiC (SSiC) variations, while much more costly, offer exceptional purity, strength, and resistance to chemical assault, making them appropriate for high-value applications like GaAs or InP crystal growth.
Accuracy machining after sintering might be called for to accomplish limited resistances, specifically for crucibles utilized in vertical gradient freeze (VGF) or Czochralski (CZ) systems.
Surface finishing is vital to minimize nucleation websites for issues and guarantee smooth thaw circulation during spreading.
3.2 Quality Assurance and Efficiency Validation
Strenuous quality control is important to make sure dependability and durability of SiC crucibles under requiring functional problems.
Non-destructive assessment techniques such as ultrasonic screening and X-ray tomography are utilized to discover inner fractures, spaces, or density variants.
Chemical analysis through XRF or ICP-MS confirms reduced degrees of metal pollutants, while thermal conductivity and flexural stamina are gauged to confirm material uniformity.
Crucibles are typically subjected to simulated thermal cycling tests before shipment to identify potential failure modes.
Set traceability and qualification are standard in semiconductor and aerospace supply chains, where component failure can result in expensive manufacturing losses.
4. Applications and Technical Impact
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play a crucial duty in the manufacturing of high-purity silicon for both microelectronics and solar cells.
In directional solidification furnaces for multicrystalline photovoltaic ingots, big SiC crucibles work as the primary container for liquified silicon, enduring temperature levels over 1500 ° C for numerous cycles.
Their chemical inertness stops contamination, while their thermal security guarantees consistent solidification fronts, leading to higher-quality wafers with fewer dislocations and grain borders.
Some makers layer the internal surface area with silicon nitride or silica to even more minimize bond and promote ingot release after cooling.
In research-scale Czochralski growth of compound semiconductors, smaller SiC crucibles are utilized to hold thaws of GaAs, InSb, or CdTe, where minimal reactivity and dimensional stability are critical.
4.2 Metallurgy, Foundry, and Emerging Technologies
Past semiconductors, SiC crucibles are vital in steel refining, alloy prep work, and laboratory-scale melting operations involving aluminum, copper, and rare-earth elements.
Their resistance to thermal shock and erosion makes them suitable for induction and resistance heaters in factories, where they outlast graphite and alumina alternatives by numerous cycles.
In additive manufacturing of reactive metals, SiC containers are used in vacuum cleaner induction melting to stop crucible breakdown and contamination.
Arising applications consist of molten salt activators and concentrated solar power systems, where SiC vessels might include high-temperature salts or fluid metals for thermal power storage.
With continuous developments in sintering technology and finish engineering, SiC crucibles are positioned to sustain next-generation materials handling, making it possible for cleaner, much more reliable, and scalable commercial thermal systems.
In recap, silicon carbide crucibles represent a crucial making it possible for modern technology in high-temperature material synthesis, integrating phenomenal thermal, mechanical, and chemical performance in a solitary crafted element.
Their extensive fostering throughout semiconductor, solar, and metallurgical industries emphasizes their duty as a cornerstone of modern industrial ceramics.
