Material Overview
Advanced architectural ceramics, due to their distinct crystal structure and chemical bond attributes, show performance advantages that steels and polymer products can not match in severe atmospheres. Alumina (Al ₂ O ₃), zirconium oxide (ZrO TWO), silicon carbide (SiC) and silicon nitride (Si five N FOUR) are the four major mainstream design porcelains, and there are vital distinctions in their microstructures: Al two O five belongs to the hexagonal crystal system and relies upon strong ionic bonds; ZrO two has three crystal kinds: monoclinic (m), tetragonal (t) and cubic (c), and acquires unique mechanical residential or commercial properties through stage change strengthening system; SiC and Si Three N four are non-oxide porcelains with covalent bonds as the main component, and have more powerful chemical security. These structural differences directly lead to significant differences in the preparation process, physical residential or commercial properties and engineering applications of the four. This write-up will systematically evaluate the preparation-structure-performance partnership of these four ceramics from the perspective of products scientific research, and discover their prospects for industrial application.
(Alumina Ceramic)
Preparation process and microstructure control
In regards to preparation process, the four ceramics reveal noticeable differences in technical paths. Alumina ceramics utilize a relatively conventional sintering procedure, normally utilizing α-Al two O two powder with a pureness of more than 99.5%, and sintering at 1600-1800 ° C after dry pressing. The secret to its microstructure control is to prevent unusual grain development, and 0.1-0.5 wt% MgO is generally added as a grain limit diffusion prevention. Zirconia ceramics require to present stabilizers such as 3mol% Y ₂ O two to keep the metastable tetragonal stage (t-ZrO two), and use low-temperature sintering at 1450-1550 ° C to avoid too much grain development. The core procedure difficulty depends on precisely managing the t → m phase transition temperature window (Ms factor). Considering that silicon carbide has a covalent bond proportion of as much as 88%, solid-state sintering requires a high temperature of more than 2100 ° C and depends on sintering help such as B-C-Al to form a liquid phase. The reaction sintering method (RBSC) can attain densification at 1400 ° C by infiltrating Si+C preforms with silicon thaw, but 5-15% cost-free Si will continue to be. The preparation of silicon nitride is one of the most intricate, usually utilizing GPS (gas pressure sintering) or HIP (warm isostatic pressing) procedures, including Y ₂ O FIVE-Al two O four collection sintering aids to create an intercrystalline glass phase, and warmth therapy after sintering to take shape the glass stage can substantially enhance high-temperature efficiency.
( Zirconia Ceramic)
Contrast of mechanical buildings and strengthening mechanism
Mechanical residential or commercial properties are the core examination signs of structural porcelains. The four kinds of materials show entirely different fortifying mechanisms:
( Mechanical properties comparison of advanced ceramics)
Alumina mainly counts on great grain fortifying. When the grain dimension is lowered from 10μm to 1μm, the strength can be boosted by 2-3 times. The exceptional strength of zirconia originates from the stress-induced phase makeover device. The stress area at the fracture tip causes the t → m phase improvement accompanied by a 4% volume growth, causing a compressive anxiety shielding impact. Silicon carbide can enhance the grain limit bonding strength via solid solution of components such as Al-N-B, while the rod-shaped β-Si four N ₄ grains of silicon nitride can produce a pull-out result similar to fiber toughening. Crack deflection and linking add to the improvement of sturdiness. It deserves noting that by building multiphase ceramics such as ZrO ₂-Si Six N Four or SiC-Al ₂ O SIX, a selection of strengthening systems can be collaborated to make KIC go beyond 15MPa · m ¹/ TWO.
Thermophysical residential properties and high-temperature behavior
High-temperature security is the key advantage of architectural porcelains that differentiates them from standard materials:

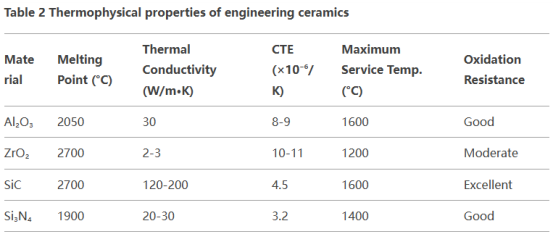

(Thermophysical properties of engineering ceramics)
Silicon carbide shows the best thermal monitoring efficiency, with a thermal conductivity of as much as 170W/m · K(comparable to aluminum alloy), which is due to its straightforward Si-C tetrahedral framework and high phonon propagation rate. The reduced thermal development coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have exceptional thermal shock resistance, and the essential ΔT worth can get to 800 ° C, which is especially appropriate for duplicated thermal cycling atmospheres. Although zirconium oxide has the highest melting factor, the conditioning of the grain border glass phase at heat will trigger a sharp decrease in strength. By adopting nano-composite innovation, it can be raised to 1500 ° C and still maintain 500MPa stamina. Alumina will experience grain boundary slide over 1000 ° C, and the addition of nano ZrO ₂ can create a pinning effect to prevent high-temperature creep.
Chemical stability and rust actions
In a destructive environment, the 4 sorts of ceramics show substantially different failing devices. Alumina will liquify externally in solid acid (pH <2) and strong alkali (pH > 12) options, and the deterioration price boosts tremendously with enhancing temperature level, reaching 1mm/year in steaming concentrated hydrochloric acid. Zirconia has excellent resistance to inorganic acids, however will certainly undertake reduced temperature level destruction (LTD) in water vapor environments above 300 ° C, and the t → m phase transition will bring about the development of a microscopic split network. The SiO ₂ safety layer based on the surface of silicon carbide offers it exceptional oxidation resistance listed below 1200 ° C, but soluble silicates will be produced in molten antacids steel atmospheres. The corrosion behavior of silicon nitride is anisotropic, and the deterioration rate along the c-axis is 3-5 times that of the a-axis. NH Six and Si(OH)₄ will certainly be generated in high-temperature and high-pressure water vapor, resulting in product bosom. By enhancing the structure, such as preparing O’-SiAlON ceramics, the alkali rust resistance can be enhanced by greater than 10 times.
( Silicon Carbide Disc)
Common Design Applications and Situation Research
In the aerospace field, NASA makes use of reaction-sintered SiC for the leading side elements of the X-43A hypersonic aircraft, which can endure 1700 ° C aerodynamic home heating. GE Air travel uses HIP-Si three N four to manufacture turbine rotor blades, which is 60% lighter than nickel-based alloys and permits greater operating temperatures. In the medical area, the fracture toughness of 3Y-TZP zirconia all-ceramic crowns has gotten to 1400MPa, and the service life can be encompassed greater than 15 years with surface slope nano-processing. In the semiconductor sector, high-purity Al two O two porcelains (99.99%) are utilized as dental caries products for wafer etching tools, and the plasma rust rate is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.
Technical challenges and development trends
The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm components < 0.1 mm ), and high manufacturing price of silicon nitride(aerospace-grade HIP-Si two N four gets to $ 2000/kg). The frontier advancement instructions are focused on: 1st Bionic framework layout(such as covering split framework to boost strength by 5 times); ② Ultra-high temperature level sintering innovation( such as stimulate plasma sintering can accomplish densification within 10 mins); five Smart self-healing porcelains (containing low-temperature eutectic phase can self-heal cracks at 800 ° C); ④ Additive manufacturing modern technology (photocuring 3D printing precision has actually gotten to ± 25μm).
( Silicon Nitride Ceramics Tube)
Future development trends
In a detailed contrast, alumina will certainly still control the conventional ceramic market with its price advantage, zirconia is irreplaceable in the biomedical area, silicon carbide is the favored product for severe environments, and silicon nitride has great possible in the area of high-end tools. In the following 5-10 years, through the integration of multi-scale architectural regulation and intelligent production innovation, the efficiency borders of design ceramics are anticipated to achieve brand-new developments: for example, the design of nano-layered SiC/C porcelains can achieve sturdiness of 15MPa · m 1ST/ TWO, and the thermal conductivity of graphene-modified Al two O four can be boosted to 65W/m · K. With the innovation of the “double carbon” strategy, the application range of these high-performance ceramics in brand-new energy (gas cell diaphragms, hydrogen storage products), green manufacturing (wear-resistant components life increased by 3-5 times) and various other fields is anticipated to maintain a typical yearly growth price of more than 12%.
