1. Product Basics and Structural Residence
1.1 Crystal Chemistry and Polymorphism

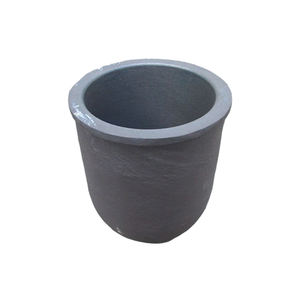

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms organized in a tetrahedral lattice, developing among one of the most thermally and chemically robust materials recognized.
It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most pertinent for high-temperature applications.
The solid Si– C bonds, with bond energy exceeding 300 kJ/mol, provide phenomenal hardness, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is chosen due to its capacity to preserve structural integrity under severe thermal gradients and harsh liquified environments.
Unlike oxide porcelains, SiC does not go through disruptive phase transitions as much as its sublimation point (~ 2700 ° C), making it perfect for continual operation above 1600 ° C.
1.2 Thermal and Mechanical Efficiency
A specifying attribute of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which advertises uniform heat distribution and minimizes thermal stress and anxiety during quick home heating or air conditioning.
This residential or commercial property contrasts greatly with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are prone to cracking under thermal shock.
SiC also displays exceptional mechanical toughness at raised temperatures, preserving over 80% of its room-temperature flexural toughness (up to 400 MPa) also at 1400 ° C.
Its reduced coefficient of thermal development (~ 4.0 × 10 ⁻⁶/ K) further boosts resistance to thermal shock, a critical consider duplicated cycling in between ambient and functional temperatures.
Furthermore, SiC demonstrates remarkable wear and abrasion resistance, guaranteeing lengthy life span in settings involving mechanical handling or turbulent thaw circulation.
2. Manufacturing Techniques and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Strategies
Commercial SiC crucibles are largely produced with pressureless sintering, response bonding, or hot pushing, each offering distinctive benefits in price, purity, and efficiency.
Pressureless sintering entails condensing fine SiC powder with sintering help such as boron and carbon, followed by high-temperature treatment (2000– 2200 ° C )in inert atmosphere to accomplish near-theoretical thickness.
This method returns high-purity, high-strength crucibles appropriate for semiconductor and progressed alloy processing.
Reaction-bonded SiC (RBSC) is produced by infiltrating a permeable carbon preform with molten silicon, which responds to develop β-SiC in situ, causing a compound of SiC and residual silicon.
While slightly reduced in thermal conductivity as a result of metal silicon additions, RBSC uses superb dimensional security and lower manufacturing cost, making it popular for large-scale commercial use.
Hot-pressed SiC, though extra costly, gives the greatest thickness and pureness, scheduled for ultra-demanding applications such as single-crystal growth.
2.2 Surface Area High Quality and Geometric Precision
Post-sintering machining, consisting of grinding and splashing, makes certain precise dimensional resistances and smooth internal surface areas that minimize nucleation sites and reduce contamination risk.
Surface roughness is meticulously controlled to prevent thaw bond and assist in very easy launch of solidified materials.
Crucible geometry– such as wall surface thickness, taper angle, and bottom curvature– is enhanced to stabilize thermal mass, structural strength, and compatibility with furnace burner.
Customized designs accommodate details thaw volumes, home heating accounts, and product reactivity, making sure optimum performance throughout diverse industrial procedures.
Advanced quality assurance, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, verifies microstructural homogeneity and absence of issues like pores or fractures.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Hostile Settings
SiC crucibles display exceptional resistance to chemical assault by molten steels, slags, and non-oxidizing salts, outperforming standard graphite and oxide ceramics.
They are steady in contact with molten light weight aluminum, copper, silver, and their alloys, resisting wetting and dissolution due to reduced interfacial power and development of protective surface area oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles stop metallic contamination that can break down digital buildings.
Nonetheless, under highly oxidizing conditions or in the visibility of alkaline changes, SiC can oxidize to develop silica (SiO ₂), which might react even more to create low-melting-point silicates.
Therefore, SiC is best matched for neutral or decreasing ambiences, where its security is optimized.
3.2 Limitations and Compatibility Considerations
In spite of its robustness, SiC is not generally inert; it reacts with particular molten materials, especially iron-group metals (Fe, Ni, Co) at high temperatures via carburization and dissolution procedures.
In liquified steel processing, SiC crucibles degrade quickly and are consequently prevented.
In a similar way, antacids and alkaline planet steels (e.g., Li, Na, Ca) can minimize SiC, launching carbon and forming silicides, limiting their use in battery material synthesis or reactive metal casting.
For liquified glass and porcelains, SiC is usually compatible yet might introduce trace silicon into highly delicate optical or electronic glasses.
Comprehending these material-specific communications is important for choosing the ideal crucible kind and ensuring procedure purity and crucible long life.
4. Industrial Applications and Technical Development
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are vital in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar cells, where they hold up against extended exposure to thaw silicon at ~ 1420 ° C.
Their thermal security makes sure uniform formation and lessens dislocation thickness, straight influencing photovoltaic or pv effectiveness.
In foundries, SiC crucibles are utilized for melting non-ferrous steels such as aluminum and brass, offering longer service life and reduced dross formation contrasted to clay-graphite alternatives.
They are also utilized in high-temperature lab for thermogravimetric analysis, differential scanning calorimetry, and synthesis of sophisticated porcelains and intermetallic compounds.
4.2 Future Patterns and Advanced Product Combination
Arising applications include making use of SiC crucibles in next-generation nuclear materials testing and molten salt activators, where their resistance to radiation and molten fluorides is being assessed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O SIX) are being put on SiC surfaces to even more boost chemical inertness and prevent silicon diffusion in ultra-high-purity procedures.
Additive manufacturing of SiC components using binder jetting or stereolithography is under advancement, encouraging facility geometries and rapid prototyping for specialized crucible designs.
As need expands for energy-efficient, durable, and contamination-free high-temperature processing, silicon carbide crucibles will continue to be a cornerstone modern technology in innovative materials making.
In conclusion, silicon carbide crucibles represent an important allowing part in high-temperature industrial and scientific processes.
Their unmatched combination of thermal security, mechanical toughness, and chemical resistance makes them the product of choice for applications where efficiency and integrity are paramount.
