1. Material Principles and Structural Features of Alumina
1.1 Crystallographic Phases and Surface Characteristics

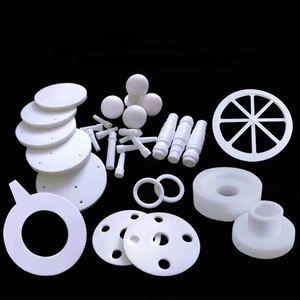

(Alumina Ceramic Chemical Catalyst Supports)
Alumina (Al Two O FOUR), especially in its α-phase type, is among the most commonly utilized ceramic materials for chemical driver sustains because of its superb thermal security, mechanical stamina, and tunable surface chemistry.
It exists in numerous polymorphic kinds, including γ, δ, θ, and α-alumina, with γ-alumina being one of the most typical for catalytic applications due to its high certain surface (100– 300 m TWO/ g )and permeable structure.
Upon heating above 1000 ° C, metastable shift aluminas (e.g., γ, δ) slowly change into the thermodynamically stable α-alumina (corundum framework), which has a denser, non-porous crystalline lattice and considerably lower area (~ 10 m ²/ g), making it much less suitable for active catalytic dispersion.
The high area of γ-alumina emerges from its malfunctioning spinel-like structure, which has cation jobs and allows for the anchoring of steel nanoparticles and ionic species.
Surface area hydroxyl teams (– OH) on alumina work as Brønsted acid websites, while coordinatively unsaturated Al FOUR ⁺ ions function as Lewis acid sites, allowing the material to take part straight in acid-catalyzed responses or stabilize anionic intermediates.
These innate surface area residential properties make alumina not simply a passive service provider yet an active contributor to catalytic systems in lots of commercial procedures.
1.2 Porosity, Morphology, and Mechanical Integrity
The effectiveness of alumina as a driver assistance depends seriously on its pore structure, which governs mass transportation, accessibility of active sites, and resistance to fouling.
Alumina sustains are crafted with regulated pore dimension distributions– ranging from mesoporous (2– 50 nm) to macroporous (> 50 nm)– to balance high surface area with efficient diffusion of reactants and items.
High porosity enhances diffusion of catalytically active metals such as platinum, palladium, nickel, or cobalt, preventing agglomeration and making best use of the number of active websites per unit volume.
Mechanically, alumina exhibits high compressive stamina and attrition resistance, vital for fixed-bed and fluidized-bed reactors where stimulant bits are subjected to long term mechanical stress and anxiety and thermal biking.
Its low thermal expansion coefficient and high melting point (~ 2072 ° C )make sure dimensional stability under rough operating conditions, including elevated temperature levels and destructive environments.

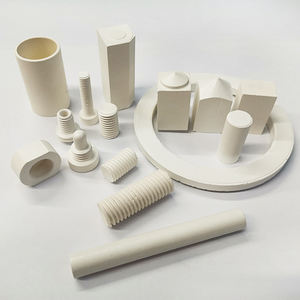

( Alumina Ceramic Chemical Catalyst Supports)
Additionally, alumina can be fabricated right into numerous geometries– pellets, extrudates, monoliths, or foams– to maximize stress decline, warm transfer, and activator throughput in large chemical engineering systems.
2. Role and Devices in Heterogeneous Catalysis
2.1 Active Steel Dispersion and Stabilization
Among the key features of alumina in catalysis is to function as a high-surface-area scaffold for spreading nanoscale metal fragments that act as active centers for chemical changes.
Via strategies such as impregnation, co-precipitation, or deposition-precipitation, worthy or change metals are evenly dispersed across the alumina surface area, forming very distributed nanoparticles with diameters frequently listed below 10 nm.
The solid metal-support communication (SMSI) in between alumina and metal particles enhances thermal stability and hinders sintering– the coalescence of nanoparticles at high temperatures– which would certainly otherwise lower catalytic task over time.
For example, in petroleum refining, platinum nanoparticles sustained on γ-alumina are vital components of catalytic reforming drivers utilized to generate high-octane gas.
Likewise, in hydrogenation reactions, nickel or palladium on alumina helps with the enhancement of hydrogen to unsaturated organic compounds, with the support stopping fragment movement and deactivation.
2.2 Promoting and Customizing Catalytic Activity
Alumina does not just act as a passive platform; it actively affects the electronic and chemical habits of sustained steels.
The acidic surface area of γ-alumina can promote bifunctional catalysis, where acid websites catalyze isomerization, breaking, or dehydration steps while metal sites deal with hydrogenation or dehydrogenation, as seen in hydrocracking and changing procedures.
Surface hydroxyl groups can take part in spillover sensations, where hydrogen atoms dissociated on metal websites migrate onto the alumina surface area, extending the zone of reactivity past the metal fragment itself.
Moreover, alumina can be doped with aspects such as chlorine, fluorine, or lanthanum to change its level of acidity, enhance thermal stability, or boost steel dispersion, customizing the support for details reaction atmospheres.
These adjustments allow fine-tuning of driver performance in regards to selectivity, conversion effectiveness, and resistance to poisoning by sulfur or coke deposition.
3. Industrial Applications and Process Combination
3.1 Petrochemical and Refining Processes
Alumina-supported catalysts are crucial in the oil and gas industry, specifically in catalytic cracking, hydrodesulfurization (HDS), and steam reforming.
In liquid catalytic splitting (FCC), although zeolites are the primary energetic stage, alumina is commonly incorporated right into the stimulant matrix to improve mechanical toughness and provide secondary fracturing websites.
For HDS, cobalt-molybdenum or nickel-molybdenum sulfides are supported on alumina to get rid of sulfur from petroleum portions, aiding meet ecological regulations on sulfur web content in fuels.
In vapor methane changing (SMR), nickel on alumina catalysts convert methane and water right into syngas (H TWO + CARBON MONOXIDE), a vital action in hydrogen and ammonia manufacturing, where the support’s stability under high-temperature heavy steam is important.
3.2 Ecological and Energy-Related Catalysis
Past refining, alumina-supported drivers play important duties in discharge control and tidy energy modern technologies.
In vehicle catalytic converters, alumina washcoats act as the key assistance for platinum-group metals (Pt, Pd, Rh) that oxidize carbon monoxide and hydrocarbons and decrease NOₓ discharges.
The high surface of γ-alumina optimizes direct exposure of precious metals, minimizing the called for loading and overall cost.
In discerning catalytic decrease (SCR) of NOₓ utilizing ammonia, vanadia-titania stimulants are frequently sustained on alumina-based substrates to enhance resilience and dispersion.
Additionally, alumina assistances are being explored in arising applications such as carbon monoxide two hydrogenation to methanol and water-gas change responses, where their stability under lowering problems is advantageous.
4. Obstacles and Future Development Directions
4.1 Thermal Stability and Sintering Resistance
A significant restriction of traditional γ-alumina is its phase transformation to α-alumina at high temperatures, causing tragic loss of surface area and pore structure.
This restricts its use in exothermic reactions or regenerative procedures entailing regular high-temperature oxidation to eliminate coke down payments.
Study concentrates on supporting the transition aluminas through doping with lanthanum, silicon, or barium, which hinder crystal growth and hold-up stage change approximately 1100– 1200 ° C.
One more technique includes producing composite supports, such as alumina-zirconia or alumina-ceria, to incorporate high surface with enhanced thermal resilience.
4.2 Poisoning Resistance and Regrowth Capacity
Driver deactivation due to poisoning by sulfur, phosphorus, or hefty steels stays an obstacle in industrial operations.
Alumina’s surface can adsorb sulfur substances, blocking active websites or reacting with supported metals to create non-active sulfides.
Creating sulfur-tolerant formulas, such as making use of standard promoters or safety layers, is vital for prolonging stimulant life in sour settings.
Just as crucial is the capacity to regenerate invested drivers through controlled oxidation or chemical cleaning, where alumina’s chemical inertness and mechanical robustness enable multiple regrowth cycles without structural collapse.
Finally, alumina ceramic stands as a keystone material in heterogeneous catalysis, incorporating architectural robustness with functional surface chemistry.
Its role as a catalyst assistance expands far past easy immobilization, proactively affecting response pathways, improving metal diffusion, and allowing large-scale commercial procedures.
Ongoing innovations in nanostructuring, doping, and composite layout remain to expand its capacities in lasting chemistry and energy conversion innovations.
