1. Material Principles and Microstructural Attributes of Alumina Ceramics
1.1 Make-up, Purity Grades, and Crystallographic Quality

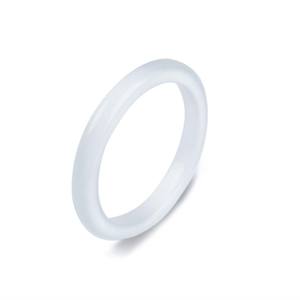

(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O FOUR), or light weight aluminum oxide, is one of the most extensively used technological ceramics in commercial engineering because of its superb equilibrium of mechanical stamina, chemical security, and cost-effectiveness.
When crafted into wear linings, alumina ceramics are typically produced with purity degrees ranging from 85% to 99.9%, with greater purity representing enhanced firmness, use resistance, and thermal efficiency.
The leading crystalline phase is alpha-alumina, which takes on a hexagonal close-packed (HCP) framework identified by strong ionic and covalent bonding, contributing to its high melting point (~ 2072 ° C )and reduced thermal conductivity.
Microstructurally, alumina porcelains consist of fine, equiaxed grains whose dimension and circulation are regulated during sintering to enhance mechanical residential properties.
Grain sizes generally vary from submicron to a number of micrometers, with finer grains normally boosting fracture durability and resistance to crack propagation under rough filling.
Minor ingredients such as magnesium oxide (MgO) are typically introduced in trace amounts to hinder irregular grain growth during high-temperature sintering, making sure consistent microstructure and dimensional stability.
The resulting material shows a Vickers hardness of 1500– 2000 HV, substantially surpassing that of set steel (usually 600– 800 HV), making it extremely immune to surface destruction in high-wear environments.
1.2 Mechanical and Thermal Performance in Industrial Conditions
Alumina ceramic wear liners are selected largely for their exceptional resistance to abrasive, abrasive, and gliding wear devices widespread in bulk product taking care of systems.
They possess high compressive stamina (as much as 3000 MPa), great flexural stamina (300– 500 MPa), and exceptional rigidity (Young’s modulus of ~ 380 Grade point average), allowing them to stand up to extreme mechanical loading without plastic deformation.
Although inherently breakable contrasted to steels, their low coefficient of friction and high surface hardness reduce particle bond and decrease wear rates by orders of size relative to steel or polymer-based options.
Thermally, alumina maintains architectural honesty approximately 1600 ° C in oxidizing atmospheres, allowing use in high-temperature handling settings such as kiln feed systems, central heating boiler ducting, and pyroprocessing devices.

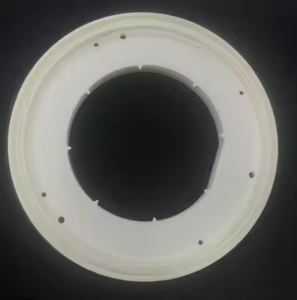

( Alumina Ceramic Wear Liners)
Its low thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional security during thermal biking, reducing the threat of splitting because of thermal shock when correctly installed.
Furthermore, alumina is electrically shielding and chemically inert to many acids, antacid, and solvents, making it suitable for harsh settings where metallic liners would degrade swiftly.
These combined homes make alumina porcelains suitable for shielding vital infrastructure in mining, power generation, cement manufacturing, and chemical handling markets.
2. Production Processes and Design Assimilation Strategies
2.1 Forming, Sintering, and Quality Control Protocols
The production of alumina ceramic wear linings entails a sequence of accuracy production actions designed to attain high density, minimal porosity, and consistent mechanical efficiency.
Raw alumina powders are refined via milling, granulation, and developing techniques such as completely dry pushing, isostatic pushing, or extrusion, relying on the wanted geometry– tiles, plates, pipelines, or custom-shaped segments.
Eco-friendly bodies are after that sintered at temperatures in between 1500 ° C and 1700 ° C in air, promoting densification via solid-state diffusion and achieving loved one densities exceeding 95%, often approaching 99% of theoretical density.
Complete densification is critical, as residual porosity functions as stress and anxiety concentrators and accelerates wear and crack under solution conditions.
Post-sintering procedures might include ruby grinding or washing to accomplish tight dimensional tolerances and smooth surface area finishes that decrease friction and bit trapping.
Each batch goes through strenuous quality control, consisting of X-ray diffraction (XRD) for phase analysis, scanning electron microscopy (SEM) for microstructural assessment, and solidity and bend screening to verify compliance with international standards such as ISO 6474 or ASTM B407.
2.2 Placing Methods and System Compatibility Factors To Consider
Reliable integration of alumina wear liners right into industrial tools calls for mindful focus to mechanical accessory and thermal growth compatibility.
Typical installment methods consist of sticky bonding utilizing high-strength ceramic epoxies, mechanical securing with studs or supports, and embedding within castable refractory matrices.
Sticky bonding is widely utilized for level or delicately rounded surface areas, supplying uniform stress and anxiety distribution and vibration damping, while stud-mounted systems enable easy replacement and are favored in high-impact zones.
To suit differential thermal growth between alumina and metal substratums (e.g., carbon steel), engineered voids, adaptable adhesives, or certified underlayers are integrated to stop delamination or cracking during thermal transients.
Developers must also consider edge protection, as ceramic tiles are prone to cracking at subjected corners; remedies include diagonal sides, metal shrouds, or overlapping floor tile arrangements.
Correct installation guarantees lengthy service life and makes best use of the protective feature of the lining system.
3. Use Systems and Efficiency Examination in Service Environments
3.1 Resistance to Abrasive, Erosive, and Influence Loading
Alumina ceramic wear liners excel in environments dominated by three main wear systems: two-body abrasion, three-body abrasion, and fragment erosion.
In two-body abrasion, hard particles or surfaces straight gouge the lining surface, an usual incident in chutes, receptacles, and conveyor shifts.
Three-body abrasion includes loose bits entraped between the liner and relocating product, leading to rolling and damaging action that progressively removes product.
Erosive wear occurs when high-velocity fragments strike the surface, particularly in pneumatically-driven communicating lines and cyclone separators.
As a result of its high solidity and low fracture strength, alumina is most efficient in low-impact, high-abrasion scenarios.
It carries out remarkably well versus siliceous ores, coal, fly ash, and cement clinker, where wear prices can be lowered by 10– 50 times contrasted to moderate steel linings.
Nonetheless, in applications entailing repeated high-energy effect, such as primary crusher chambers, hybrid systems integrating alumina floor tiles with elastomeric supports or metallic shields are commonly employed to soak up shock and protect against crack.
3.2 Area Screening, Life Process Analysis, and Failing Setting Evaluation
Efficiency examination of alumina wear linings involves both laboratory testing and area surveillance.
Standardized examinations such as the ASTM G65 dry sand rubber wheel abrasion examination provide relative wear indices, while tailored slurry disintegration gears replicate site-specific problems.
In industrial setups, put on price is usually measured in mm/year or g/kWh, with service life projections based upon initial thickness and observed destruction.
Failing modes consist of surface sprucing up, micro-cracking, spalling at edges, and full floor tile dislodgement as a result of glue destruction or mechanical overload.
Source analysis usually reveals installment errors, inappropriate quality choice, or unexpected effect lots as primary factors to early failing.
Life process price analysis consistently demonstrates that regardless of greater preliminary costs, alumina liners use remarkable overall expense of possession as a result of extended replacement periods, reduced downtime, and lower maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Applications Throughout Heavy Industries
Alumina ceramic wear liners are released throughout a wide range of commercial industries where product degradation presents operational and economic difficulties.
In mining and mineral processing, they secure transfer chutes, mill linings, hydrocyclones, and slurry pumps from abrasive slurries including quartz, hematite, and various other hard minerals.
In power plants, alumina ceramic tiles line coal pulverizer air ducts, central heating boiler ash receptacles, and electrostatic precipitator elements revealed to fly ash disintegration.
Concrete makers use alumina liners in raw mills, kiln inlet zones, and clinker conveyors to combat the highly abrasive nature of cementitious materials.
The steel sector employs them in blast heater feed systems and ladle shadows, where resistance to both abrasion and modest thermal lots is crucial.
Also in much less traditional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics provide sturdy security against chemically aggressive and coarse products.
4.2 Arising Trends: Compound Equipments, Smart Liners, and Sustainability
Current research focuses on enhancing the toughness and performance of alumina wear systems through composite style.
Alumina-zirconia (Al ₂ O ₃-ZrO TWO) compounds leverage improvement toughening from zirconia to enhance crack resistance, while alumina-titanium carbide (Al two O ₃-TiC) grades provide improved performance in high-temperature gliding wear.
Another development entails embedding sensing units within or below ceramic liners to monitor wear progression, temperature level, and influence regularity– making it possible for anticipating upkeep and electronic double combination.
From a sustainability point of view, the prolonged life span of alumina linings decreases material intake and waste generation, straightening with round economy concepts in commercial operations.
Recycling of spent ceramic liners right into refractory accumulations or construction products is additionally being discovered to lessen ecological impact.
In conclusion, alumina ceramic wear linings represent a cornerstone of modern-day industrial wear protection innovation.
Their extraordinary firmness, thermal security, and chemical inertness, combined with mature production and installation techniques, make them essential in combating product deterioration across hefty markets.
As product science developments and digital surveillance comes to be a lot more incorporated, the future generation of clever, durable alumina-based systems will further enhance operational effectiveness and sustainability in unpleasant atmospheres.
