1. Fundamental Structure and Structural Qualities of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Change

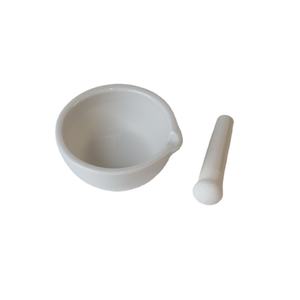

(Quartz Ceramics)
Quartz ceramics, additionally referred to as integrated silica or integrated quartz, are a class of high-performance not natural products originated from silicon dioxide (SiO ₂) in its ultra-pure, non-crystalline (amorphous) form.
Unlike standard ceramics that rely on polycrystalline frameworks, quartz ceramics are distinguished by their complete absence of grain boundaries due to their glazed, isotropic network of SiO ₄ tetrahedra interconnected in a three-dimensional random network.
This amorphous framework is accomplished through high-temperature melting of natural quartz crystals or artificial silica forerunners, followed by fast cooling to avoid formation.
The resulting material includes normally over 99.9% SiO TWO, with trace impurities such as alkali steels (Na ⁺, K ⁺), aluminum, and iron maintained parts-per-million degrees to maintain optical quality, electrical resistivity, and thermal efficiency.
The absence of long-range order eliminates anisotropic behavior, making quartz porcelains dimensionally secure and mechanically consistent in all instructions– a critical benefit in accuracy applications.
1.2 Thermal Habits and Resistance to Thermal Shock
One of one of the most specifying functions of quartz ceramics is their remarkably low coefficient of thermal growth (CTE), usually around 0.55 × 10 ⁻⁶/ K between 20 ° C and 300 ° C.
This near-zero expansion occurs from the adaptable Si– O– Si bond angles in the amorphous network, which can change under thermal stress without breaking, enabling the product to endure rapid temperature level changes that would certainly fracture conventional ceramics or metals.
Quartz porcelains can withstand thermal shocks going beyond 1000 ° C, such as straight immersion in water after heating to red-hot temperature levels, without breaking or spalling.
This property makes them vital in atmospheres entailing duplicated heating and cooling down cycles, such as semiconductor processing furnaces, aerospace components, and high-intensity illumination systems.
Furthermore, quartz porcelains preserve structural stability up to temperature levels of about 1100 ° C in constant solution, with temporary exposure tolerance approaching 1600 ° C in inert environments.

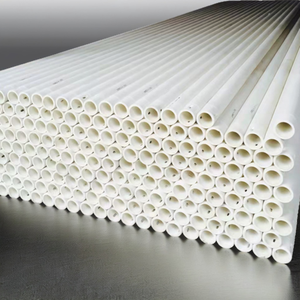

( Quartz Ceramics)
Past thermal shock resistance, they display high softening temperature levels (~ 1600 ° C )and exceptional resistance to devitrification– though prolonged exposure above 1200 ° C can initiate surface formation right into cristobalite, which might compromise mechanical strength due to volume adjustments throughout stage changes.
2. Optical, Electric, and Chemical Properties of Fused Silica Equipment
2.1 Broadband Openness and Photonic Applications
Quartz ceramics are renowned for their remarkable optical transmission across a large spooky range, extending from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This openness is enabled by the lack of impurities and the homogeneity of the amorphous network, which lessens light spreading and absorption.
High-purity synthetic fused silica, generated by means of fire hydrolysis of silicon chlorides, attains also higher UV transmission and is made use of in essential applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damage threshold– standing up to breakdown under intense pulsed laser irradiation– makes it suitable for high-energy laser systems made use of in fusion study and industrial machining.
Additionally, its low autofluorescence and radiation resistance guarantee reliability in scientific instrumentation, consisting of spectrometers, UV healing systems, and nuclear monitoring gadgets.
2.2 Dielectric Performance and Chemical Inertness
From an electrical viewpoint, quartz ceramics are outstanding insulators with volume resistivity surpassing 10 ¹⁸ Ω · cm at space temperature level and a dielectric constant of approximately 3.8 at 1 MHz.
Their reduced dielectric loss tangent (tan δ < 0.0001) ensures minimal power dissipation in high-frequency and high-voltage applications, making them appropriate for microwave windows, radar domes, and protecting substratums in digital settings up.
These properties remain secure over a wide temperature array, unlike lots of polymers or traditional ceramics that deteriorate electrically under thermal stress.
Chemically, quartz ceramics display impressive inertness to the majority of acids, consisting of hydrochloric, nitric, and sulfuric acids, due to the stability of the Si– O bond.
Nonetheless, they are susceptible to strike by hydrofluoric acid (HF) and solid alkalis such as hot sodium hydroxide, which damage the Si– O– Si network.
This selective sensitivity is manipulated in microfabrication processes where controlled etching of integrated silica is required.
In hostile industrial atmospheres– such as chemical handling, semiconductor wet benches, and high-purity fluid handling– quartz ceramics work as liners, sight glasses, and reactor parts where contamination have to be lessened.
3. Production Processes and Geometric Engineering of Quartz Ceramic Components
3.1 Thawing and Developing Methods
The production of quartz porcelains entails a number of specialized melting approaches, each tailored to specific purity and application needs.
Electric arc melting utilizes high-purity quartz sand melted in a water-cooled copper crucible under vacuum cleaner or inert gas, generating big boules or tubes with superb thermal and mechanical homes.
Flame blend, or burning synthesis, includes burning silicon tetrachloride (SiCl four) in a hydrogen-oxygen fire, transferring great silica fragments that sinter right into a transparent preform– this method yields the highest possible optical quality and is used for synthetic integrated silica.
Plasma melting supplies an alternate route, offering ultra-high temperatures and contamination-free processing for niche aerospace and defense applications.
As soon as melted, quartz porcelains can be formed with precision spreading, centrifugal developing (for tubes), or CNC machining of pre-sintered blanks.
Due to their brittleness, machining calls for diamond devices and mindful control to prevent microcracking.
3.2 Accuracy Fabrication and Surface Completing
Quartz ceramic components are frequently fabricated right into complex geometries such as crucibles, tubes, poles, windows, and custom insulators for semiconductor, photovoltaic or pv, and laser markets.
Dimensional accuracy is essential, especially in semiconductor production where quartz susceptors and bell jars have to maintain accurate alignment and thermal harmony.
Surface completing plays a crucial function in efficiency; refined surfaces minimize light scattering in optical parts and lessen nucleation sites for devitrification in high-temperature applications.
Engraving with buffered HF solutions can produce regulated surface appearances or get rid of damaged layers after machining.
For ultra-high vacuum (UHV) systems, quartz porcelains are cleaned and baked to eliminate surface-adsorbed gases, making certain minimal outgassing and compatibility with delicate procedures like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Function in Semiconductor and Photovoltaic Manufacturing
Quartz porcelains are fundamental products in the construction of incorporated circuits and solar batteries, where they serve as heating system tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capability to withstand high temperatures in oxidizing, reducing, or inert environments– integrated with low metallic contamination– makes certain process purity and return.
During chemical vapor deposition (CVD) or thermal oxidation, quartz elements preserve dimensional security and stand up to bending, stopping wafer breakage and imbalance.
In solar production, quartz crucibles are made use of to expand monocrystalline silicon ingots using the Czochralski procedure, where their purity straight affects the electric quality of the last solar cells.
4.2 Usage in Lighting, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lamps and UV sanitation systems, quartz ceramic envelopes include plasma arcs at temperatures surpassing 1000 ° C while transmitting UV and noticeable light efficiently.
Their thermal shock resistance prevents failing during fast lamp ignition and closure cycles.
In aerospace, quartz porcelains are used in radar windows, sensing unit real estates, and thermal defense systems as a result of their reduced dielectric constant, high strength-to-density ratio, and stability under aerothermal loading.
In analytical chemistry and life sciences, merged silica veins are essential in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness protects against sample adsorption and ensures accurate separation.
In addition, quartz crystal microbalances (QCMs), which count on the piezoelectric homes of crystalline quartz (distinctive from fused silica), make use of quartz ceramics as safety housings and protecting assistances in real-time mass sensing applications.
In conclusion, quartz porcelains represent an one-of-a-kind crossway of extreme thermal resilience, optical transparency, and chemical pureness.
Their amorphous framework and high SiO ₂ web content make it possible for performance in atmospheres where conventional products stop working, from the heart of semiconductor fabs to the edge of room.
As modern technology advances toward greater temperature levels, greater accuracy, and cleaner processes, quartz ceramics will continue to act as an essential enabler of advancement throughout science and sector.
